Quick Details

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: YTA110

Packaging & Delivery

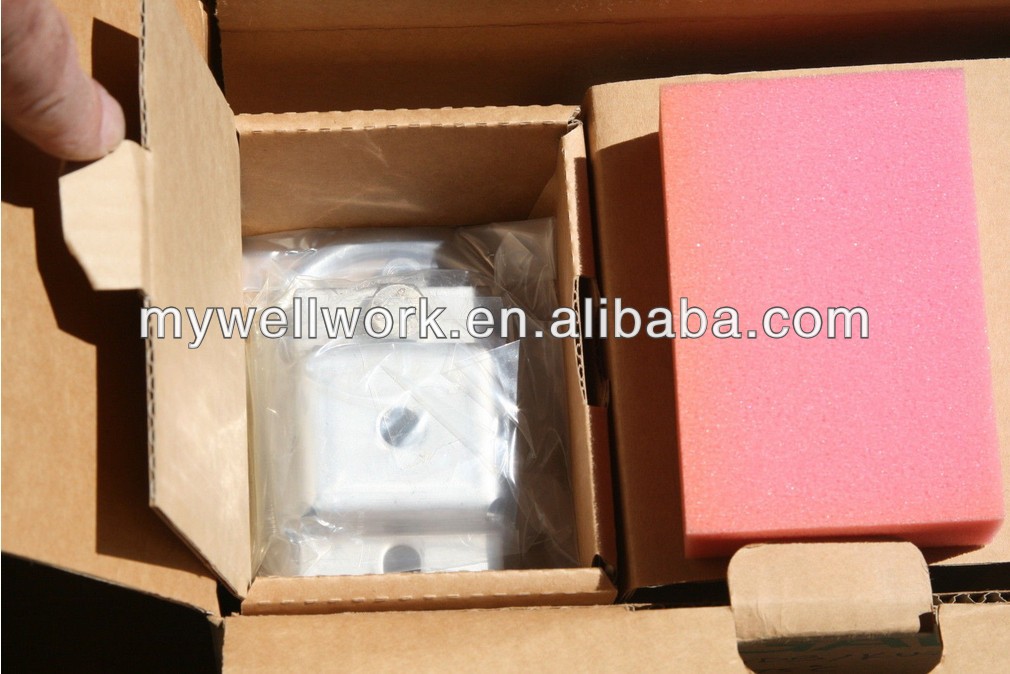

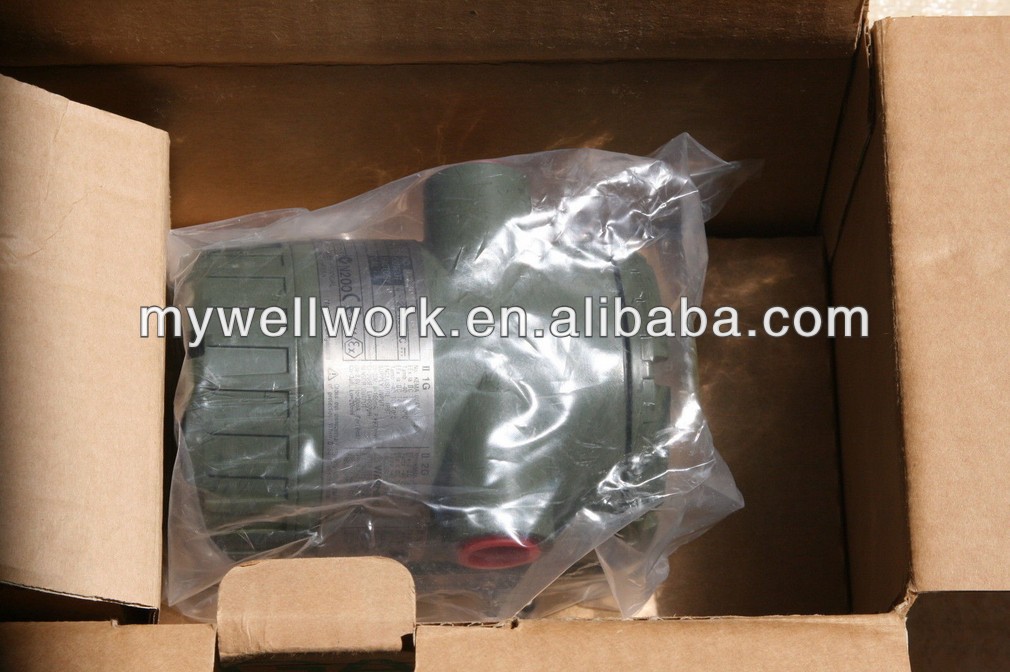

Packaging Details in carton or as customers' requirement
Delivery Time 3-5 weeks

YTA110 Temperature Transmitter Yokogawa



The YTA110 is the high performance temperature transmitter that accepts thermocouple, RTD, ohm, or DC millivolt input and converts it to a 4 to 20mA DC signal for transmission. The YTA110 supports either BRAIN or HART communication protocol.



Features

1. Outstanding performance
Microprocessor-based sensing technology ensures high accuracy and stability.


2. High reliability
Dual-compartment housing realizes high resistance capability to harsh environments.


3. SIL Certification
YTA series temperature transmitters have been certified by TÜV NORD as being compliant with the requirements of the IEC61508 for SIL 2.


4. Variety of sensor inputs
The type of sensor input is user-selectable: thermocouples, RTDs, ohms, or DC milivolt.


5. Digital communication

The BRAIN and HART communication protocols are available.
The instrument configuration can be changed by the user with a BT200 terminal or HART communicator.
The YTA320 temperature transmitter also supports FOUNDATION fieldbus communication protocol.


6. Self-diagnostics function
Continuous self-diagnostics capability ensures long-term performance and lower cost of ownership.


7. LCD display with bargraph
The LCD display simultaneously displays a digital readout and a bargraph.


8. Dual universal inputs (Model YTA320)
The YTA320 can accept two thermocouple, RTD, ohm, or DC milivolt inputs. Differential or average temperature transmitter measurement can be selected. A sensor backup function automatically switches-over from the primary sensor to a backup if the sensor fails.

Specifications: Temperature Transmitters YTA110 YTA310/YTA320

Accuracy (typical)
 YTA110: ±0.1% of span

YTA310/320: ±0.05% of span
Cold junction Compensation accuracy(For T/C only)

±0.5 deg C (0.9 deg F)
Power supply effect±0.005% of calibration span per volt
Ambient temperature effect±0.1%/10 deg C (YTA110)
Input signalYTA110/YTA310: single input, YTA320: dual input

Input type is selectable: thermocouples, 2-, 3-, and 4-wire RTDs, ohm and DC milivolt
OutputTwo wire 4 to 20 mA DC or FOUNDATION fieldbus signal (YTA320)
Supply voltageBRAIN and HART: 10.5 to 42 V DC

(10.5 to 30 V DC for Intrinsically safe type)

Fieldbus: 9 to 32 V DC

(9 to 24 V DC for Entity and 9 to 17.5 V DC for FISCO)
Ambient temperatureOption code may affect limits

-40 to 85 deg C (-40 to 185 deg F)

-30 to 80 deg C (-22 to 176 deg F) with integral indicator

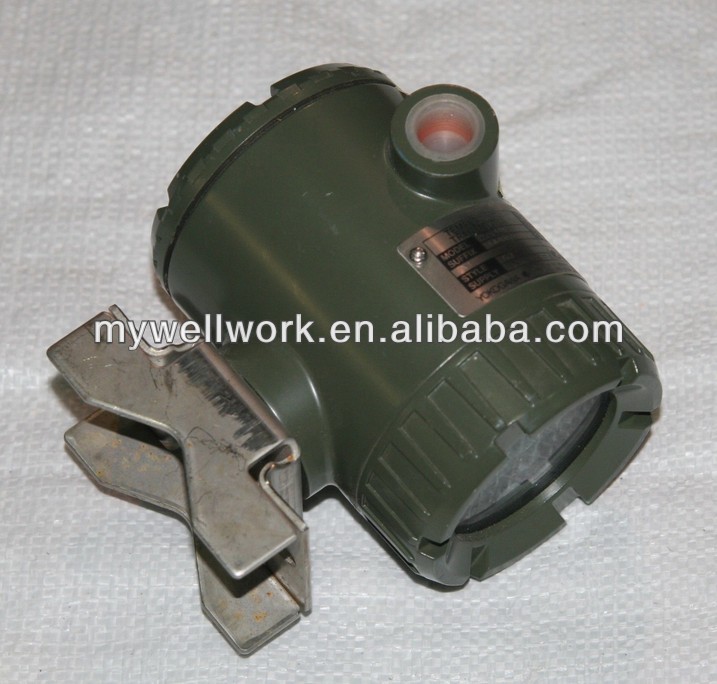

MountingOptional mounting bracket can be used either for two-inch pipe or flat panel mounting.
Weight1.2 kg (2.6lb) without integral indicator and mounting bracket. Integral indicator weighs 0.2kg (0.4lb).
Degrees of protectionIP66, IP67 and NEMA 4X
CertificatesCENELEC, CSA, FM, IECEx or TIIS
SIL CertificateCertified by TÜV NORD in compliance with the IEC61508 SIL 2 capability for single transmitter use.
